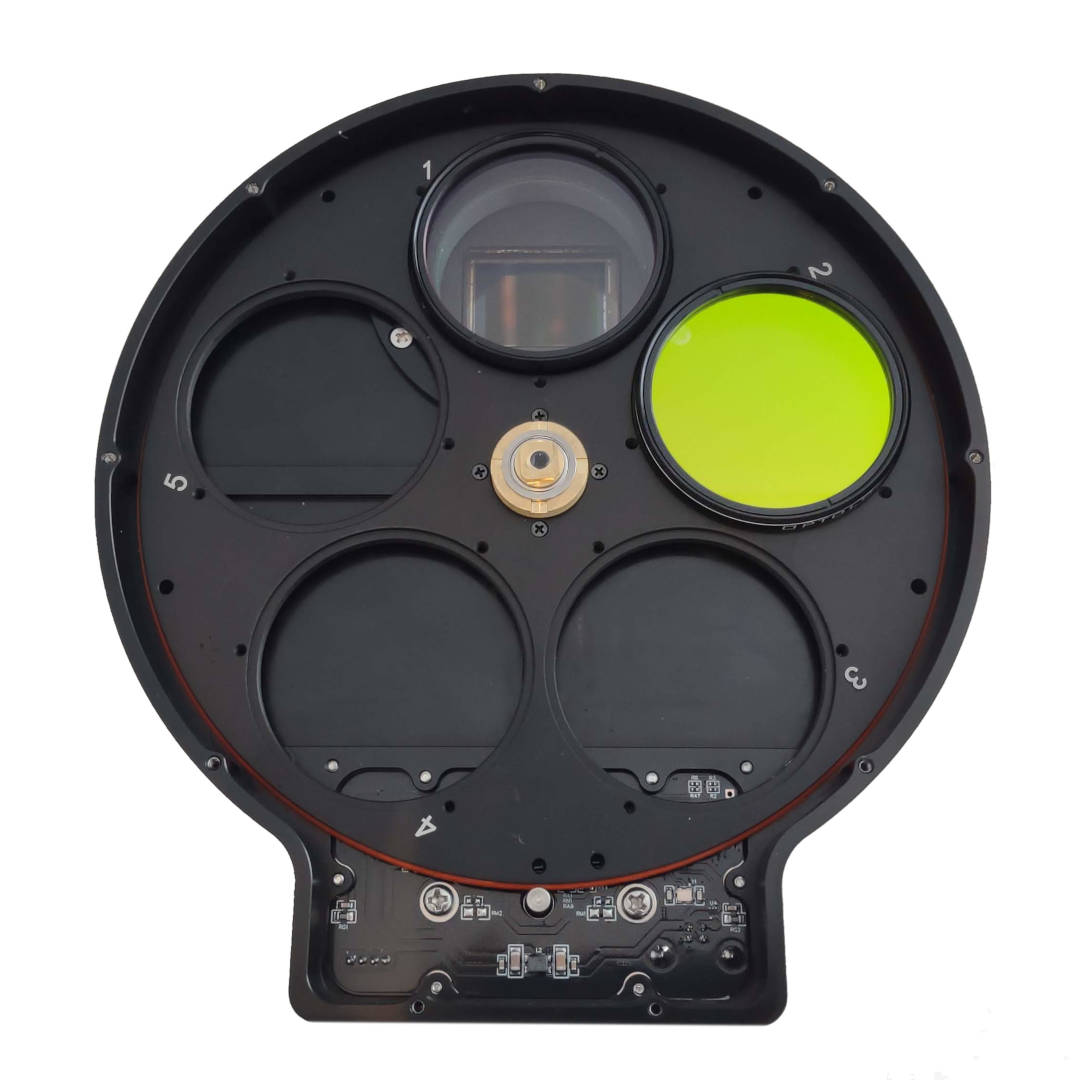

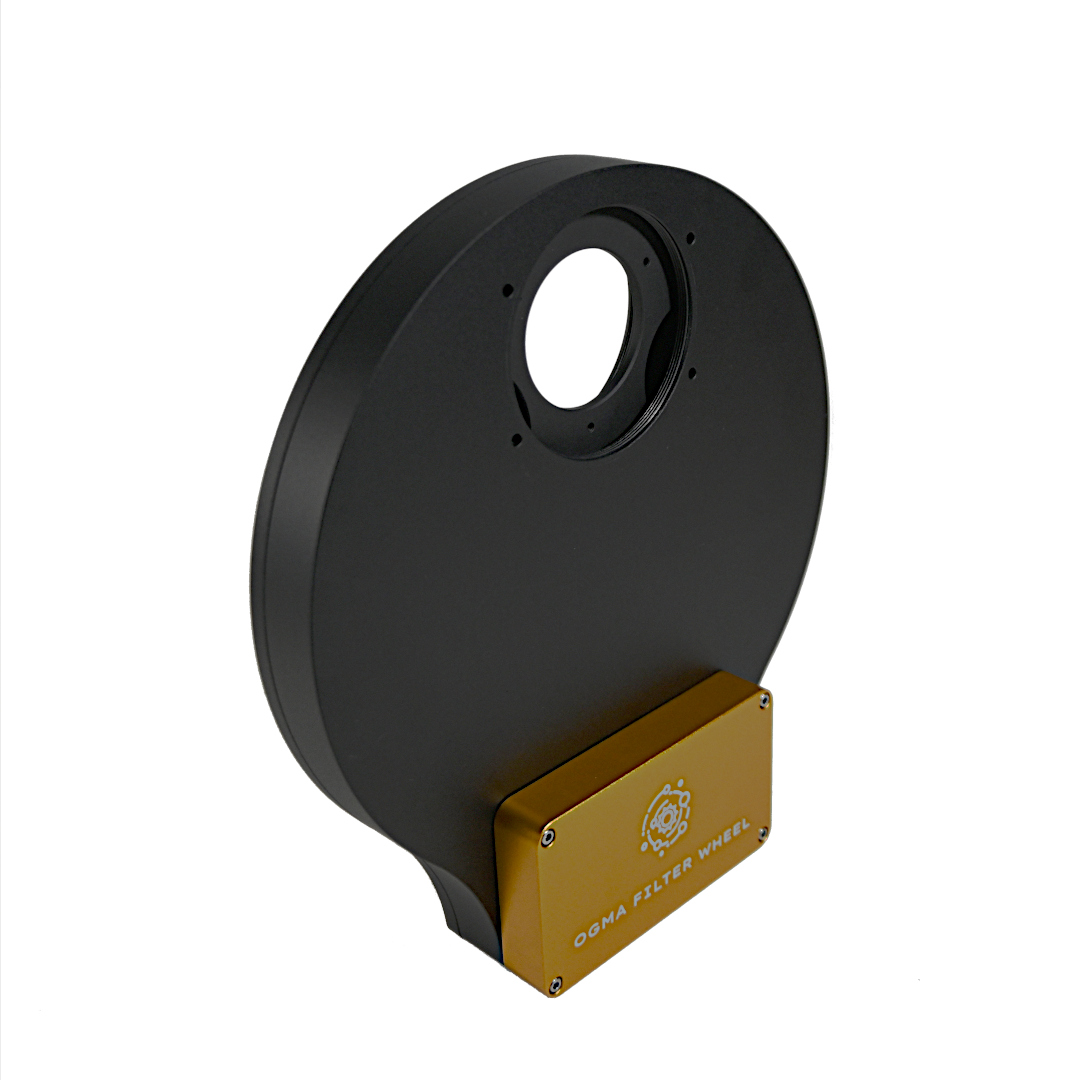

Ogma Filter Wheel 2in x 5 Positions Mounted Filters (OFW52i)

OFW Ogma Filter Wheel 5 positions 2in OFW Ogma Filter Wheel 5 positions 2in OFW Ogma Filter Wheel 5 positions 2in Ogma Filter Wheel (OFW5X2) OFW Ogma Filter Wheel
Expedited shipping available!
Price
$240.00
Description

No need to swap filters in the dark; let the OFW do it for you.

Automated Convenience: With our USB-powered OFW, you can effortlessly switch filters from the comfort of your home—no extra power source is needed.

Available in two models: This model is for 2-inch mounted filters, and the other is for 36-mm unmounted filters. Each weighs around 18.5 ounces (525 grams).

Software Compatibility: Enjoy seamless operation on Windows with our ASCOM driver and Linux with INDI support.

Quality Assured: Every OFW undergoes rigorous testing and is shipped from the USA, ensuring top-quality performance.

Elevate your astrophotography today and enjoy the simplicity of automated filter switching with OGMA.

Brand
OGMA
SKU
OFW52i
Return Policy
30-days refund or replacement
Categories
Filter Wheels

Filter Compatibility

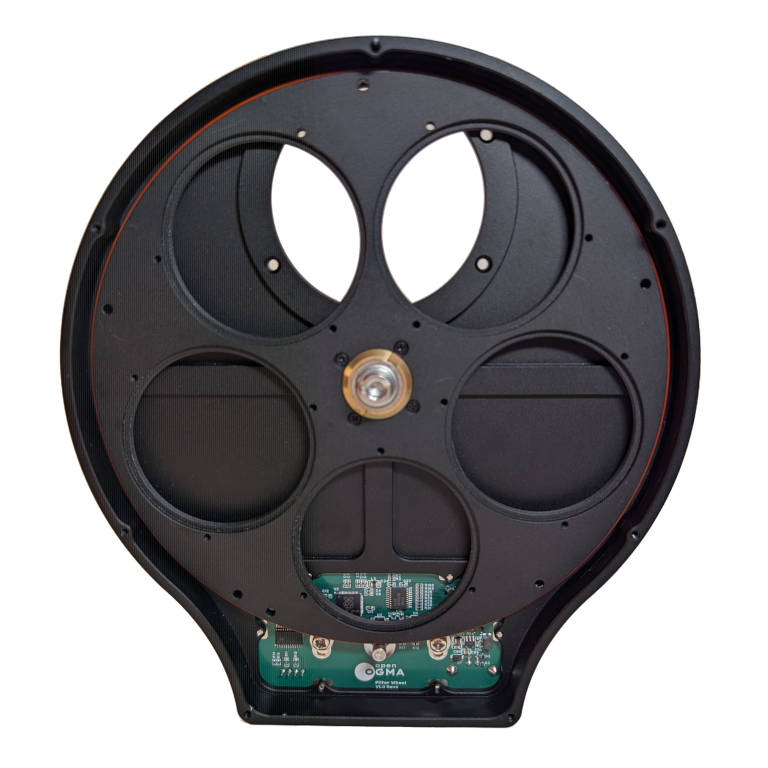

The OGMA Electronic Filter Wheel 5 x 2-inch supports both mounted and unmounted 2-inch filters:

  • Mounted 2-inch filters: These can be easily threaded into the filter carousel using the standard M48 threads in each slot.

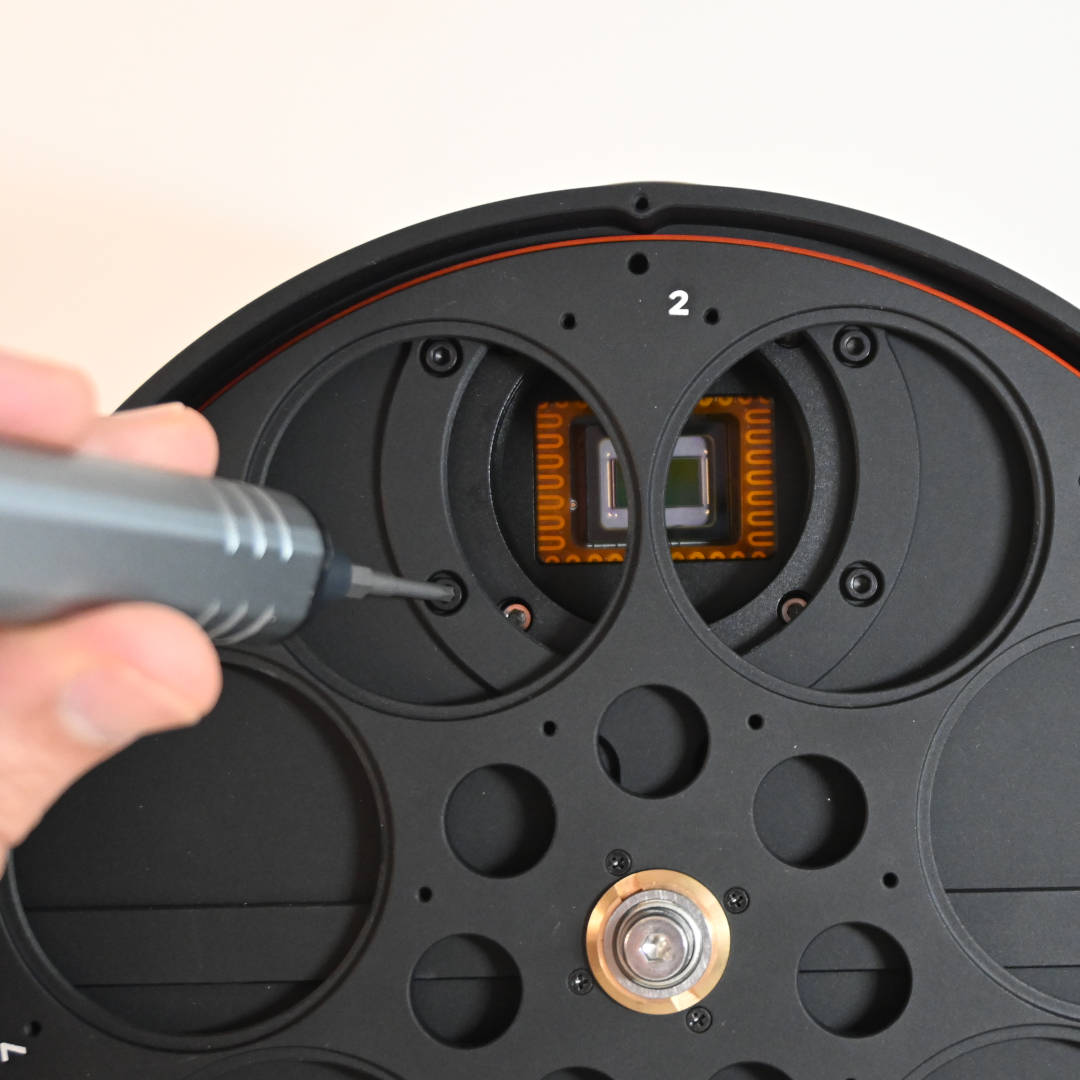

  • Unmounted 50.8 mm (2-inch) filters: The wheel includes three small threaded holes around each filter slot. You can use the provided screws and retaining gaskets to hold unmounted filters in place securely.

See the mechanical drawings of the filter carousel for reference.

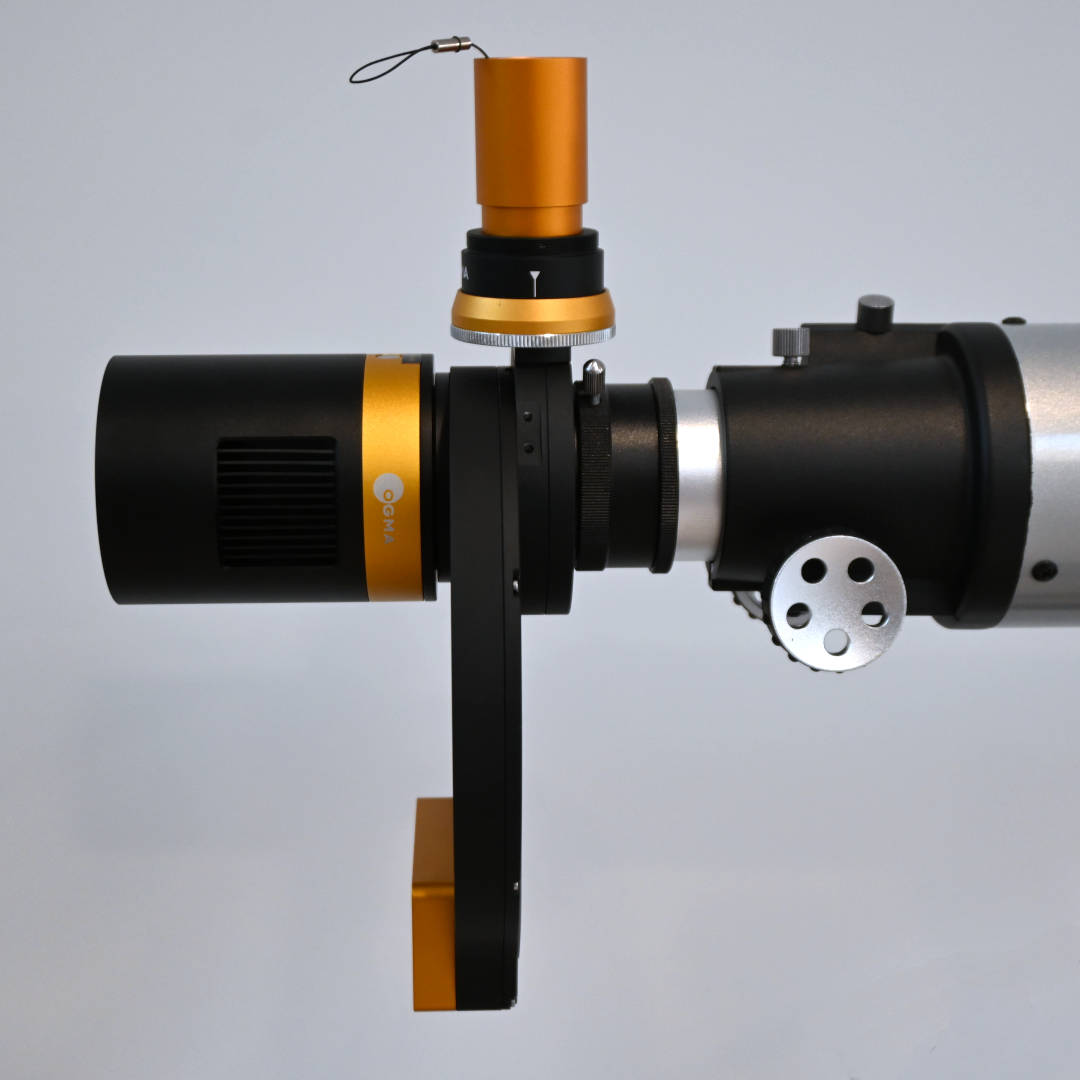

Camera and Telescope Compatibility

The Ogma Filter Wheels can be easily connected to:

  • All Ogma cooled cameras.

  • The Newest Touptek cooled cameras that share the same front plate as OGMA.

  • The older Touptek cooled cameras, through the large M42 thread around the sensor.

  • Most ZWO cooled cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5 screws.

  • (Untested) - Most QHY cameras that have six tapped holes distributed on a circumference of 62 mm in diameter for M2.5. This will require six screws M3.

  • In addition, the package includes three adapters with the most commonly used thread for astrophotography. These adapters can be used to connect the filter wheel to a variety of cameras and telescopes:

    • M42 (M) to M54 (F) x 1mm extension

    • M48 (F) to M42 (F) x 0mm thread adapter

    • M54 (M) to M48 (F) x 16.5mm extension

Visit the manual pages for instructions, firmware updates, and additional drawings.

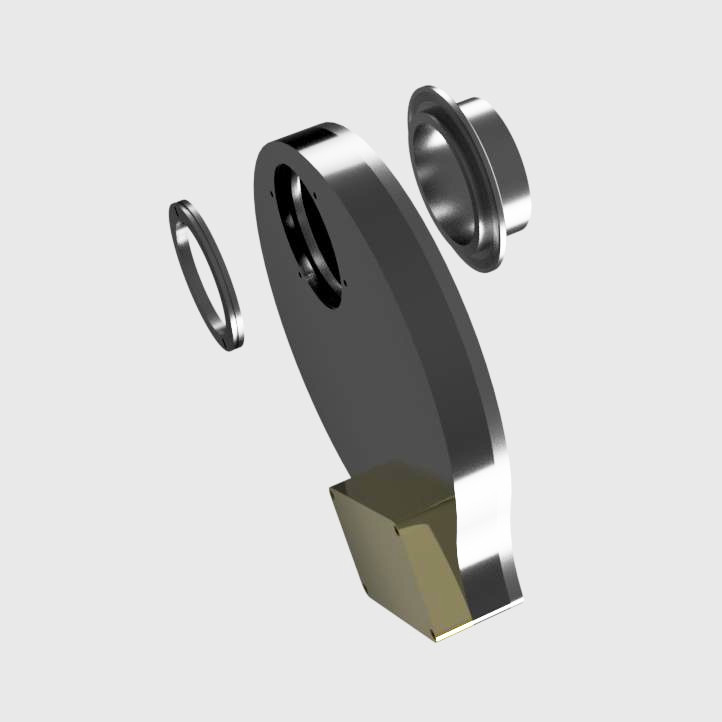

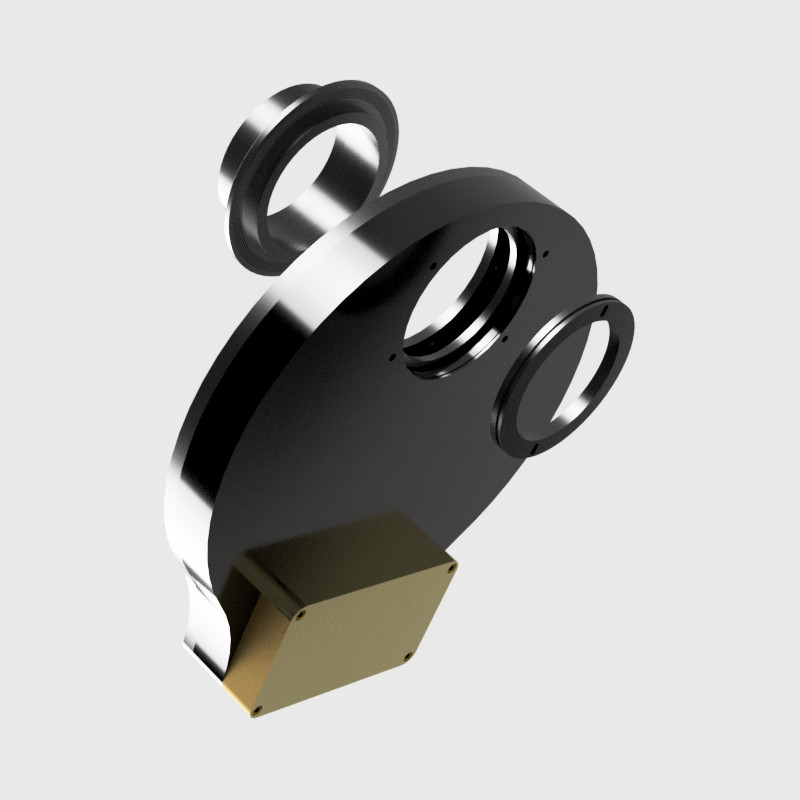

OFW52i Mechanical Drawings

Please note that this filter wheel has a back focus of 20 mm (width). Two of the three included thread adapters will further increase the back focus of the filter wheel by 1 mm and 16.5 mm, respectively, when attached.

Using with INDI?

To use the filter wheel with the INDI platform on Linux, open KStars, navigate to the profile editor, and select 'Ogmacam EFW' as your equipment. This will ensure seamless integration and control of the filter wheel within the INDI environment.

Warranty

OGMA warrants your product to be free from defects in materials and workmanship for one year. OGMA will repair or replace a product or part which, upon inspection by OGMA, is found to be defective during one year following the date that you receive the equipment.

For specific details, read OGMA's limited warranty.
