Z’Tilter Back Focus and Tilt Adjuster for ZWO ASI2600 and ASI6200 Series
Adjust tilt from behind without sacrificing back focus!
Designed and manufactured by OGMA, the Z’Tilter is a cutting-edge solution for fine-tuning back focus and correcting optical tilt on the ZWO ASI2600 (duo/non-duo) and ASI6200 camera series.
Unlike traditional tilt adjusters that consume valuable back-focus, the Z’Tilter preserves your imaging train's spacing, ensuring seamless integration with your setup.
Its rear-facing adjustment screws allow for precise tweaks without interference from front-mounted accessories, making tilt correction more convenient than ever.
Highlights

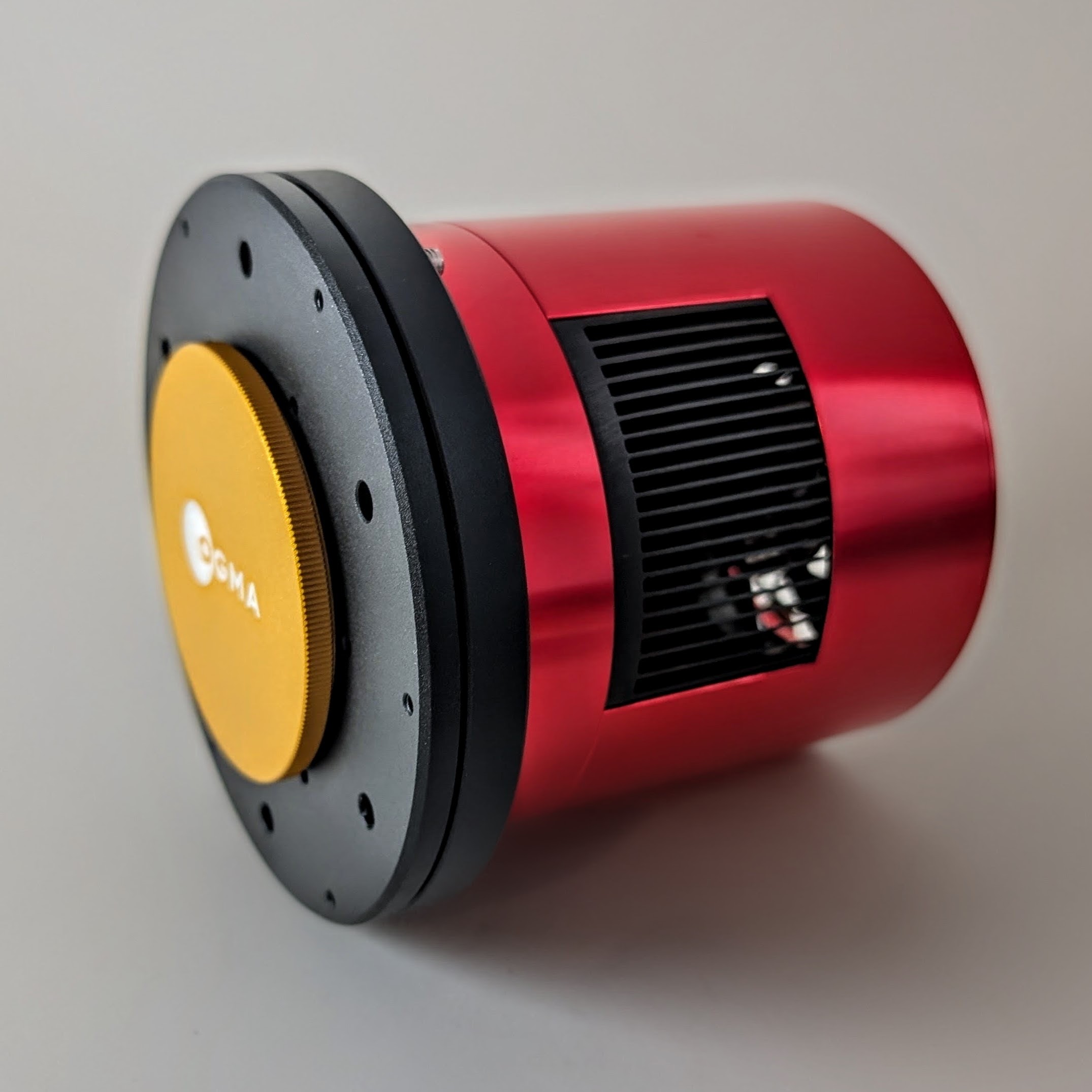

A ZWO ASI2600 camera with the Z'Tilter installed will continue having the original back focus distance of 17.5 mm.
The tilt-adjusting screws can be conveniently accessed from the rear side of the camera. This is an advantage over the default front-facing tilt solution included with the camera.
The Z'Tilter can be configured to work with either three or four pairs of pull-push screws. You decide.
The Z'Tilter is compatible only with ZWO cameras of the ASI2600 series (duo and non-duo). This product is incompatible with other camera brands and models.
Customer Feedback
A picture is worth a thousand words

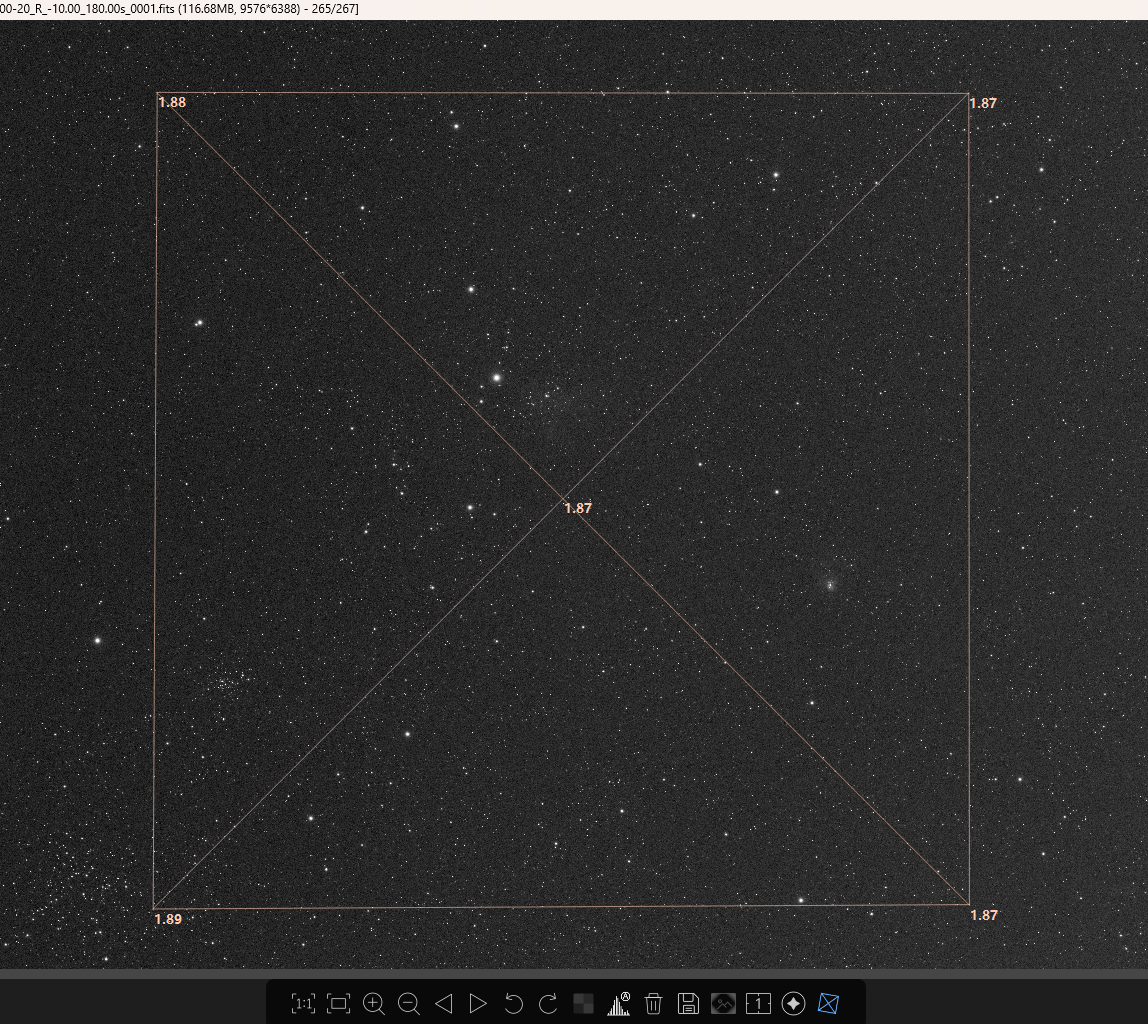

I had made hundreds of attempts to eliminate the tilt with [a premium tilt solution from another brand] to no avail. See the enclosed image for the results with the Z'Tilter in just five adjustments.
Feedback by: DavesViews
You can follow this customer's work on Astrobin.
Mechanical Drawings
Z'Tilter Installation
For Black and Star Spanged Editions
Update: Expanded Compatibility for Z’Tilter
When we first recorded the installation video for the Z’Tilter, it had only been tested with the ZWO ASI2600 series cameras. Since then, the community has successfully tested and used the Z’Tilter with other models, including the ASI2600 Duo and ASI6200.
For the ASI6200 series, we now include six CNC-machined stainless steel shims with every new Z’Tilter. These shims compensate for a slight mechanical difference in the ASI6200 camera body and should be installed beneath the tilt ring, where the six screws secure the ring to the camera. This ensures a perfect fit for the ASI6200 camera series.
We’re grateful to the community for helping expand compatibility and validating performance across more setups!
Disclaimer
The Z'Tilter is designed to replace your camera's original front flange. Please note that the camera manufacturer may void the warranty if informed about the use of this modification. If you choose to install this product, we strongly recommend reading the instructions and watching the video tutorial to ensure proper installation. OGMAVision assumes no responsibility for any damage to your camera or changes to its warranty status resulting from the installation or use of this product.
For your convenience, we recommend keeping the original front flange in case you need to reinstall it in the future.
Warranty
OGMA warrants your product to be free from defects in materials and workmanship for one year. OGMA will repair or replace a product or part which, upon inspection by OGMA, is found to be defective during one year following the date that you receive the equipment.
For specific details, read OGMA's limited warranty.
